How do I place my speakers perfectly?

  The placement of speakers is crucial because the characteristics of sound are influenced by the interaction between the speakers and the room. These interactions can significantly impact the balance of tone, the quality of low frequencies, and sound imaging. Therefore, it is essential to find an optimal placement for the speakers to achieve the best sound quality.

  Below, we will explore 4 ways to place the speakers to optimize the sound quality effectively:

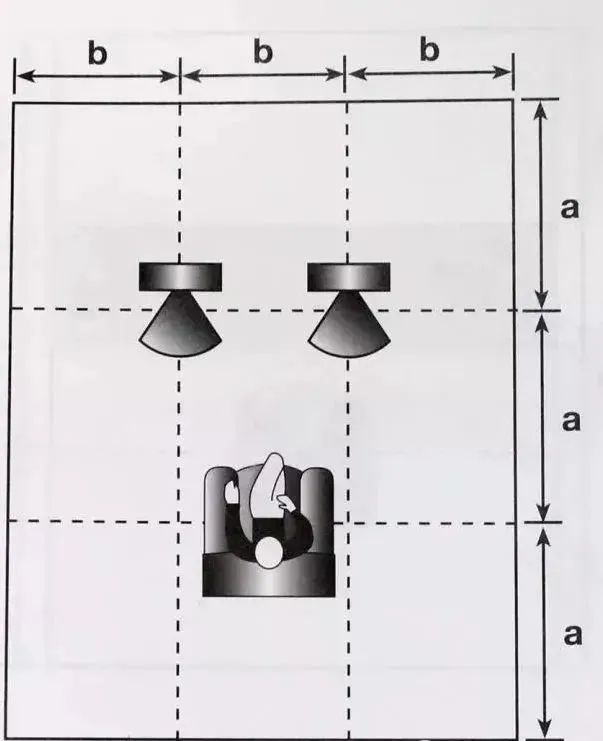

1. Three-three-one method

  This method is particularly suitable for spacious and well-proportioned rooms. The procedure is as follows: divide the length and width of the room into three equal parts. Place the speaker at the intersection of the first equal sections of both the length and width.

Tip: Tilt the speakers inward and position the listening seats away from the back wall for optimal sound quality.

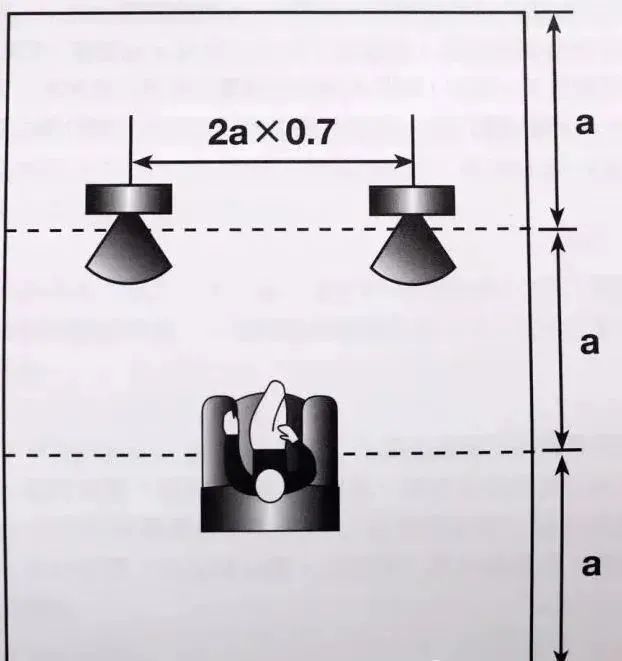

2. Three-one-seven method

  This method requires a uniform theater space proportion, such as 1:1.25:1.6 or 1:1.6:2.5. Divide the room's length into three equal parts and place the speakers at the one-third mark, with the distance between them being 0.7 times the length of the remaining two-thirds.

Tip: Angle the speakers slightly inward, and avoid placing the listening seat too close to the back wall.

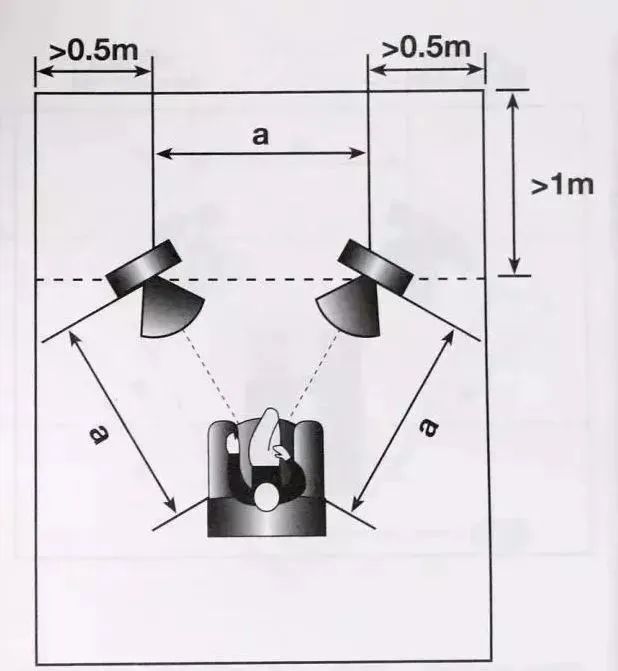

3. Equilateral triangle method

  This method is suitable for rooms of all sizes. The key is to create an equilateral triangle layout consisting of speakers and listening positions. First, the speakers must be at least 1 meter away from the back wall and 0.5 meters away from the side walls. Secondly, the line connecting the two speakers and the listening point forms an equilateral triangle, and the speakers are tilted inward at an angle of at least 45°.

Tip: The length of the side of the equilateral triangle can be flexibly adjusted according to the size of the room and the sound power.

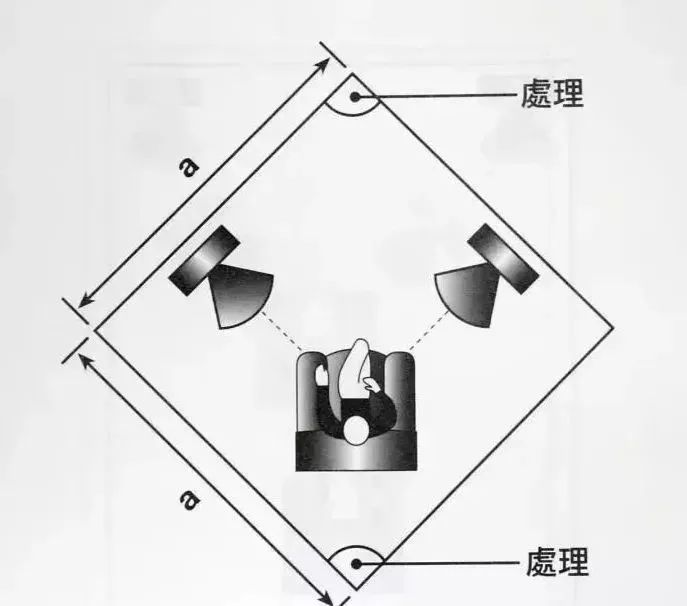

4. Diamond placement method

  This method is suitable for rooms of all sizes. The key is to create an equilateral triangle layout with the speakers and listening positions. First, ensure that the speakers are positioned at least 1 meter away from the back wall and 0.5 meters away from the side walls. Next, the line connecting the two speakers and the listening point should form an equilateral triangle, with the speakers tilted inward at an angle of at least 45°.

Tip: You can adjust the length of the sides of the equilateral triangle based on the size of the room and the sound power.

In addition to the above basic layout, the positions of the front and center speakers and subwoofers need to be carefully adjusted according to the overall environment.
